Die ABU Garcia Cardinal C3 Green/Beige, Made in Japan, habe ich in keinem Napp och Nytt Katalog gefunden, Ich denke das sie in erster Linie für den Japanischen und US Markt gefertigt wurde? Sie wurde vertrieben von ca.1992 bis 1994. Wenn jemand mehr darüber weis oder eine Katalog Abbildung hat, bitte gerne mal bei mir melden , Danke! Die Fußnr. die immer mit 84 anfängt, ist nicht das Baujahr dieser Rolle, sonder das Datum als die erste Kokille für dieses Gehäuse hergestellt wurde!

I haven’t found the ABU Garcia Cardinal C3 (Green/Beige), which was made in Japan, in any *Napp och Nytt* catalog. I assume it was manufactured primarily for the Japanese and US markets. It was sold between approximately 1992 and 1994. If anyone knows more about it or has a catalog image, please get in touch, thanks! The foot number, which always begins with „84“ does not indicate the reel’s year of manufacture, rather it represents the date the initial mold for the housing was produced.

Abu Garcia Cardinal C3 , Made in Japan

Fußnr. 84-01

Baujahr: 1992-1994 ( Modell Green/Beige = Version 3)

Revision: 01

Übersetzung: 5,1:1

Meine Artikelnr.: 175

Kurbelmitnehmer: doppeltes Feingewinde

Rücklaufsperre: Geräuschlos, durch Kupplung mit Koppelstange

Rasten der Rücklaufsperre: 6

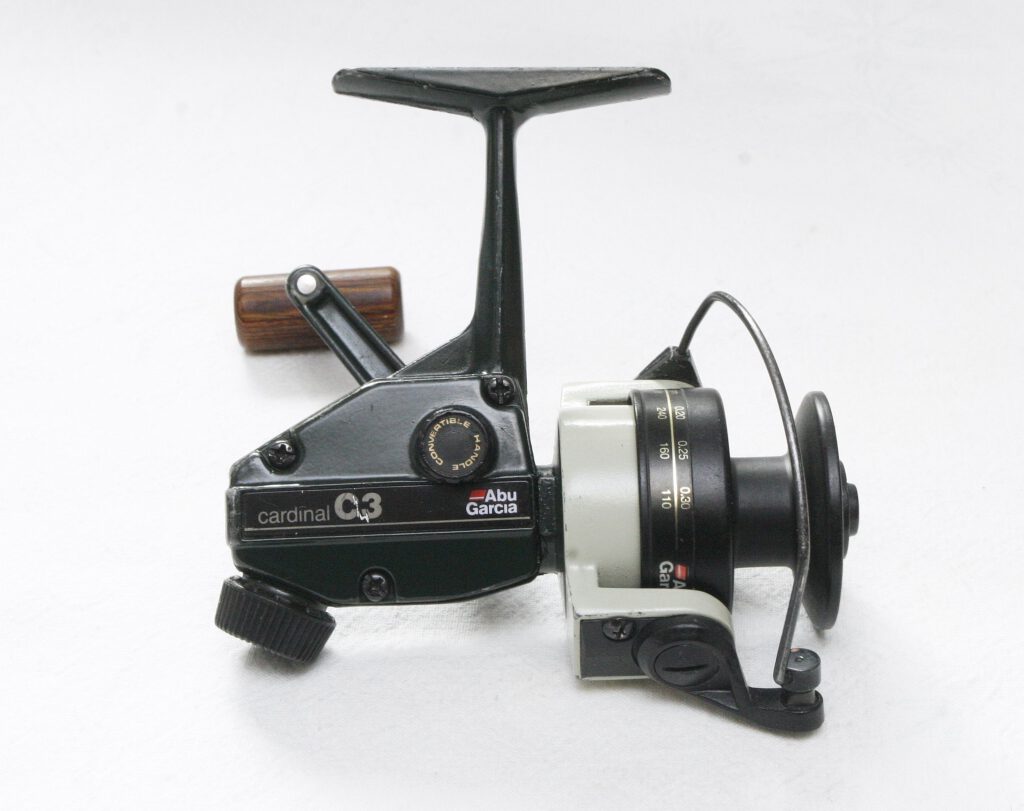

In der Seitenansicht, sieht man nur geringe Gebrauchsspuren.

In the side view, only minor signs of wear are visible.

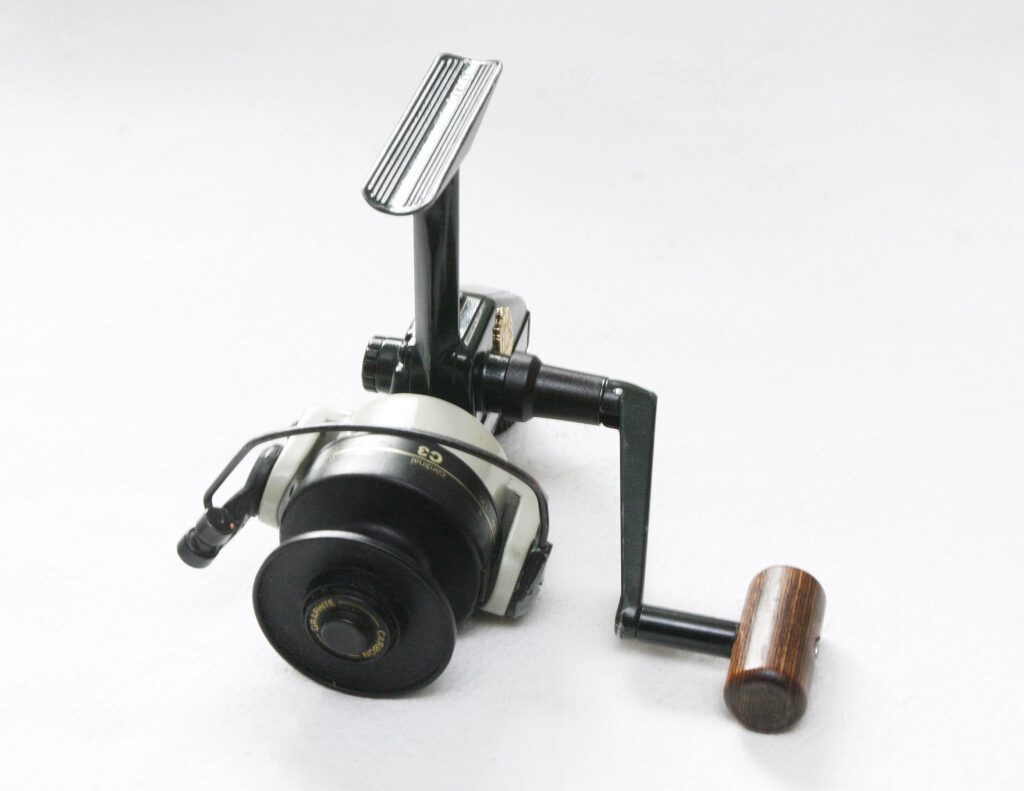

Hier erkennt man gut, die neue HI-Tec Spule, aus Carbon Graphite. Außerdem sticht der Kurbelknauf aus Echtholz ins Auge und dieser geht auch sehr leicht, eine echte Verbesserung.

Here you can clearly see the new HI-Tec spool, made of carbon graphite. Furthermore, the real wood crank knob is a real eye-catcher and it’s also very easy to turn, a real improvement.

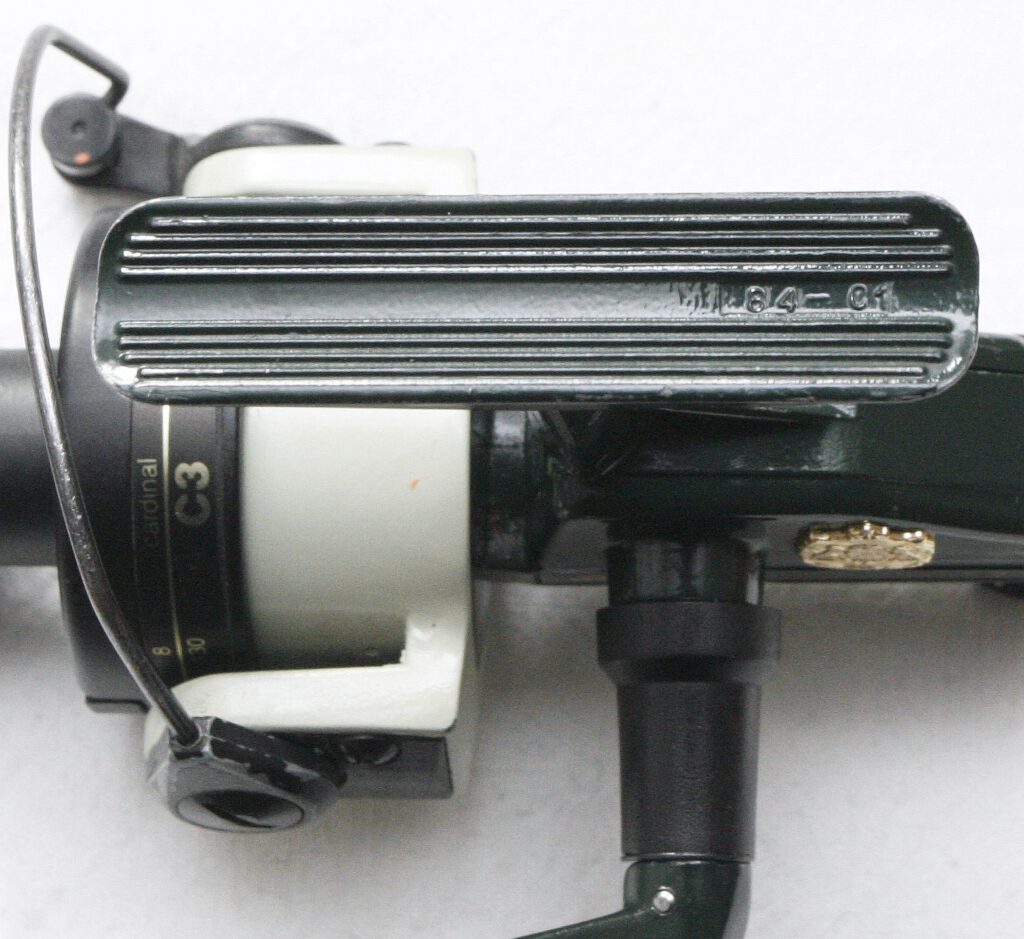

Hier die neue Art von Fussnr. 84-01, leider kann man aus diesen Nr. nur noch, raus lesen das diese Gehäuseart, ab 1984 gefertigt wurde und es handelt sich um die Revision 01. Aus den alten Fussnr. konnte man mehr heraus lesen.

Here is the new type of footno. 84-01, unfortunately, all that can be gleaned from it is that this type of case was manufactured from 1984 onwards and that it is revision 01. More information could be gleaned from the old footno.

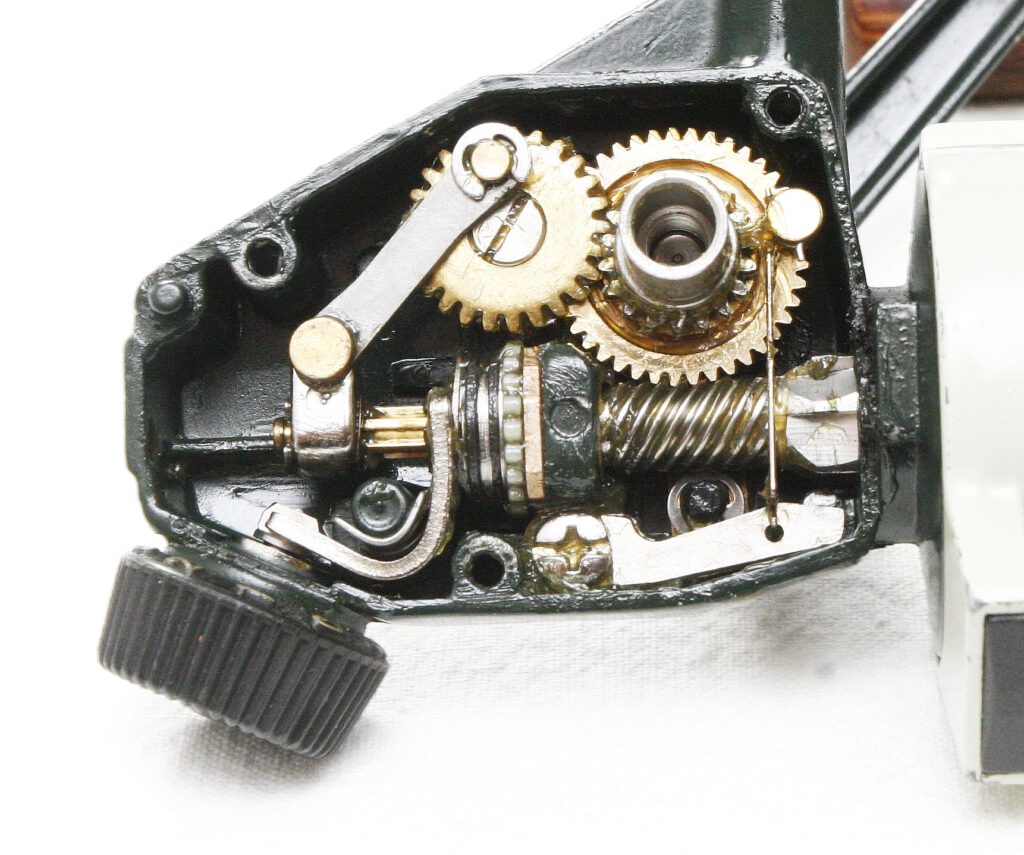

Das sehr interessante Getriebe, einerseits gibt es Teile, die sind noch wie an der ersten Cardinal 33 von 1974, anderseits eine sehr interessante geräuschlose Rücklaufsperre, mit Kupplung und Koppelstange. Außerdem fällt auf, sie hat jetzt eine dritte Bremsscheibe bekommen und eine Zentrierhilfe für den Seitendeckel. Und der Antrieb selbst ist frei von Kunststoffteilen, das gefällt mir besonders gut daran !

The gearbox is very interesting, on the one hand, some parts are still from the first Cardinal 33 from 1974, and on the other hand, it has a very interesting, silent reverse lock with clutch and connecting rod. It’s also noticeable that it now has a third brake disc and a centering aid for the side cover. And the drive itself is free of plastic parts – I particularly like that!

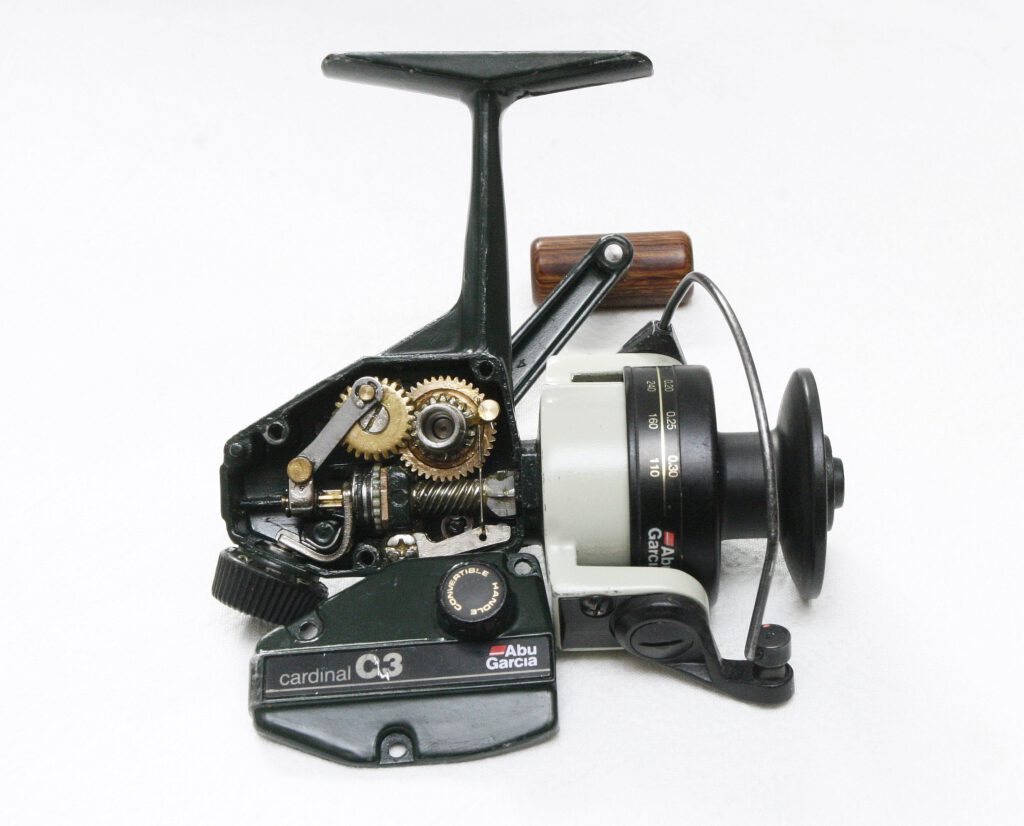

Hier nochmal die geöffnete Rolle im Ganzen!

Here is the opened reel again in its entirety!

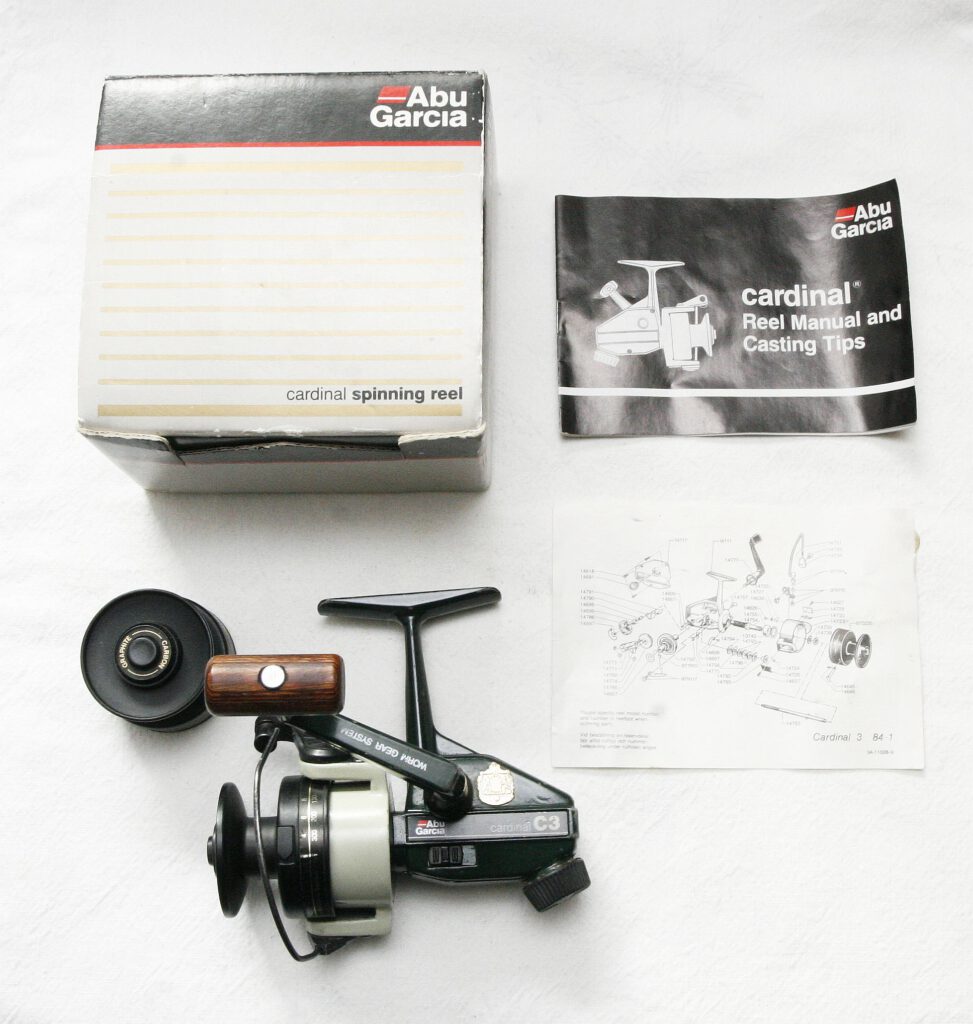

Hier das gesamte Paket, die Rolle mit Ersatzspule, der original Karton und die Papiere.

Here is the complete package: the reel with a spare spool, the original box, and the paperwork.

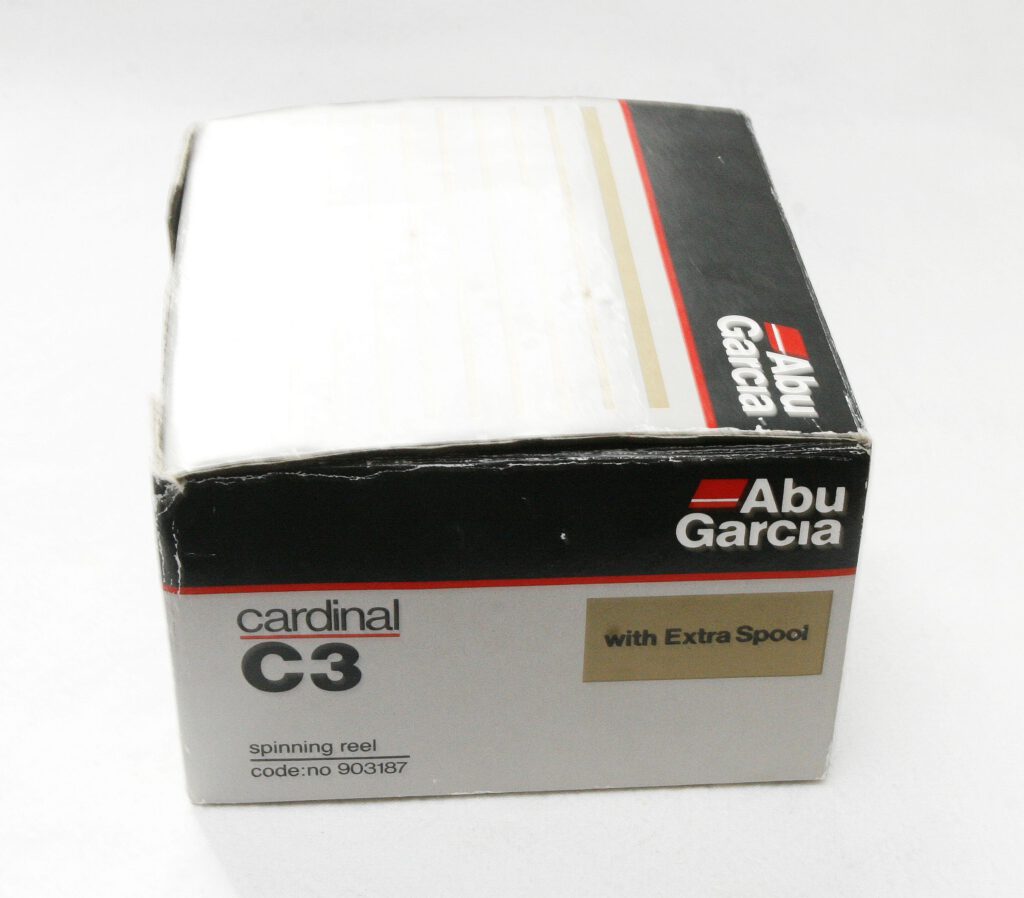

Der original Karton in der Seitenansicht, mit Nr.903187.

Side view of the original box, with number 903187.

Hier die Explosionszeichnung.

Here is the exploded view.
